The track selector is located on the left side of Timeline. It has the following controls for every track:

  • "Source track" button

  • "Lock" button

  • "Select track" button

  • "Monitor" buttons

arrow_button

The arrow buttons on top of every column allow you to reset the status of all the buttons in the column.

You can select the tracks for editing with the "Select track" buttons or using the Ctrl+7 …​ Ctrl++ keyboard shortcuts. You cannot edit the deselected tracks.

Note
Press the column header button to select or deselect all the tracks at once.

Timeline tracks can be rearranged, moved up or down to a desired position via drag-and-drop.

Adding and Removing Tracks

Cinegy Desktop supports adding up to 256 audio and video tracks to Timeline.

To add a video track, select the "Add video" command from the track selector right-click menu.

To add an audio track, select the required type from the "Add audio" submenu.

Adding a new Track

To remove a video or audio track, highlight one or several tracks by clicking it(them) and select the "Remove video" or "Remove audio" command(s) from the Timeline "Tracks" menu. The "Remove all empty" command removes all empty video and audio tracks. The remove commands are only available when additional video and/or audio tracks are empty.

Renaming Tracks

The default track name can be changed using the "Rename track…​" command from the track selector right-click menu.

Monitoring Tracks

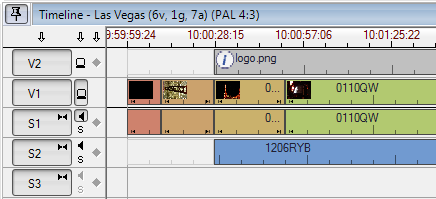

You can establish track monitoring by pressing the buttons in the "Monitor" column. The following illustration shows tracks V2 and S2 deselected from monitoring:

Monitor

Monitoring Video

Monitor_video

Deselect the "Video monitor" button (the one with the small TV set or the V1…​Vx button in Sequence Viewer) to monitor the content of the current video channel.

Monitoring Audio

Monitor_audio

The "Track monitor" button defines whether you hear audio during playback. You can turn the audio off by deselecting all the audio tracks (the buttons with the small loudspeaker).

To add a certain audio track to the playback, select its "Monitor" button.

Note
When video channels are not monitored or do not exist, clips are shown as black frames. Waveform display can be disabled for video clips via the Show waveform for audio only option.

Solo Audio Monitoring

Monitoring_s

To be able to single out the specified audio track and listen to it individually, press the "Solo" button. All other tracks will be muted. Several tracks can be solo’ed.
