Cinegy Desktop displays the system timecode as well as the original timecode in the viewers.

Understanding Timecode of System Events

Timecode conventions are used throughout Cinegy plug-ins (such as viewers, Timeline, and Cinegy Ingest.

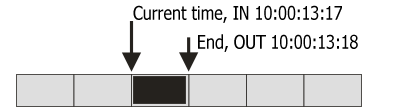

The END and Out events are related to the end of the respective frame. All the other events (START, In, current time, etc.) are at the beginning of the respective frame.

Understaning the TC

Therefore, if you mark the same frame as In and Out, the duration of the segment will be 1 frame. That is why if you go to the end of a clip, the END mark is always displayed 1 frame greater than the current time.

One_Fame_In_Out

Original Timecode (OTC)

The original timecode (OTC) is the timecode read from the tape (or from the time generator, in the case of a live ingest).


There are several different display options for the OTC. The default mode is "Absolute".

Display Mode Function

Absolute

TC for every frame corresponding to the original material

Duration

Duration of the clip

Start

Start TC

In

In TC

Out

Out TC

End

End TC

Elapsed

Time passed from the In point represented as TC

Note
--:--:--:-- is displayed instead of TC before playback reaches the In point. With no In point, TC for every frame is displayed starting calculation from the clip start.

Remaining

Time left to the Out point represented as TC

Note
--:--:--:-- is displayed instead of TC after playback reaches the Out point. With no Out point, TC for every frame remaining to the clip end is displayed.

None

No display

System Timecode (STC)

The system timecode (STC) is the timecode assigned to the material during ingest. Typically, it starts from 00:00:00:00 and is always continuous throughout the entire ingest session. Technically, the STC is the frame number in the corresponding video files.


The display modes for the STC are the same as for the OTC

Displaying STC as the Ingest Time

You can switch the STC display to the ingest time. This can be done by choosing the STC as the "Ingest Time" option from the Clip Viewer menu. The STC will be displayed in red in this mode.

Clip Duration

In the middle of the upper panel of Clip Viewer, the current duration of the clip is always displayed.

Using Timecode to Find a Frame

Any time during editing, you can enter a timecode value (using the numeric keypad on the right side of the keyboard) to navigate through a loaded clip or Sequence to a specific frame. In addition, you can cue forward and backward from the current position of the clip by a specified number of minutes, seconds and frames using positive or negative frame offset values.

  • To cue to a frame based on a known timecode, enter the timecode using the numeric keypad. You can also enter the timecode value into the corresponding field on the timecodes panel.

  • To cue forward from the current position, enter + and the offset amount using the numeric keypad.

  • To cue backward from the current position, enter and the offset amount using the numeric keypad.

TypeTimeCode

In the example above, the current viewing position will be moved forward to 2 seconds and 15 frames

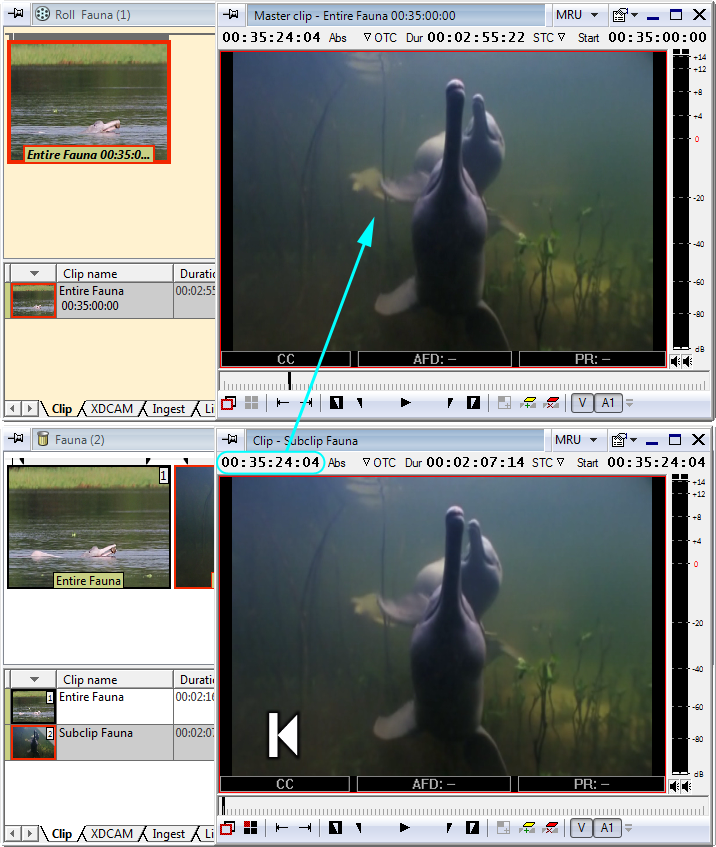

Cinegy Clip Viewer and Sequence Viewer support the timecode drag-and-drop feature. It works across any multiple viewers within Cinegy Desktop.

For example, you have the opened master clip in one viewer window and its subclip in another Clip Viewer window. If you drag-and-drop the timecode from subclip to the master clip window, it will be applied as the OTC pointer position in master Clip Viewer:

Timecodes_drag-n-drop
Note
Please note, if you are trying to drag-and-drop a timecode value that does not exist in the destination clip, the corresponding warning message will appear.

On-Screen Timecode

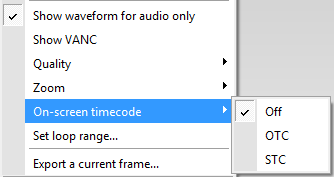

To display the timecode in the form of a running clock over the material in any Cinegy Desktop viewer, right-click in the viewer window and choose the OTC or STC to show the original timecode or system timecode accordingly:

on-screen timecode_command

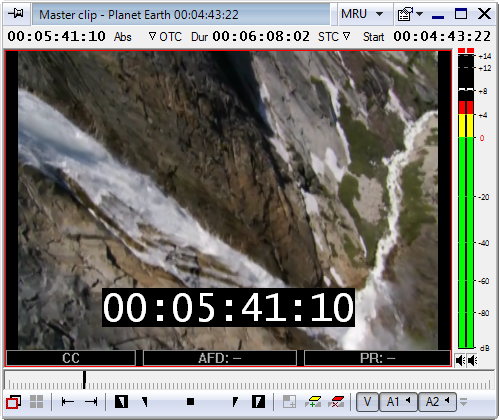

The timecode will be displayed over the clip being viewed in the hours:minutes:seconds:frames format:

on-screen timecode_in_viewer

In order not to show the on-screen timecode, choose "Off" from the "On-screen timecode" context menu.
