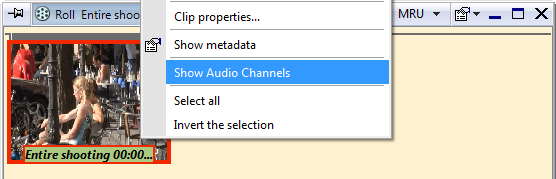

To view the audio channels available in the clip, use the "Show audio channels" command from the clip context menu in Roll:

Show_audio_channels

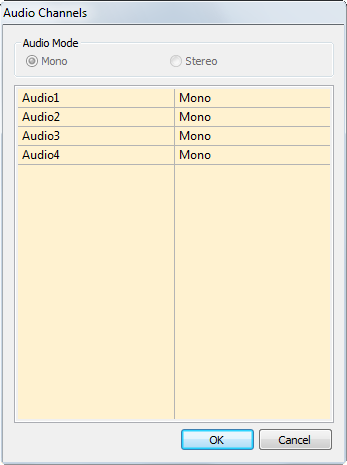

The following window will be open:

Audio_channels_window

In this window the audio mode defined during ingest is shown on top, and all audio channels available in this clip are displayed in the table view.

Important
Refer to the Setting Up Roll Info article in the Cinegy Ingest Manual for more details about audio allocation setup for ingest.

For each audio channel it is possible to define the type of the audio channel or disable it by selecting the "Not in use" option:

Audio_mono_subtypes

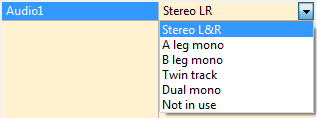

For stereo tracks the following options are available:

Audio_stereo_subtypes

If the audio settings are incorrect or the audio channel is missing, the channel type will be displayed in red in the table view:

Audio_channels_incorrect

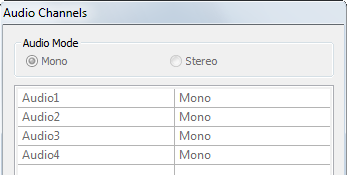

For the clips in ClipBin the audio channels are displayed without the possibility to change their type:

Audio_channels_in_ClipBin
