Effect Editor supports making effects added to a clip animated with the help of keyframes. A keyframe is a frame in which a change of an effect parameter is defined. To create a simple animation, at least two keyframes are needed – one for the initial parameter value, and another one for the new value. The parameter values between two keyframes are interpolated, i.e. automatically calculated to be distributed along the span. By default, this distribution is an even span. For more elaborated animations you can add extra keyframes between the start and end keyframes.

Adding Keyframes

To add animation to an effect, move the timescale slider effect_editor_time_slider to the position where animation should start, and press the toggle_animation_button button. When pressed, the button turns into toggle_animation_button_pressed .

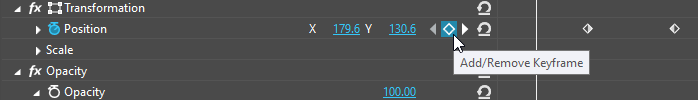

Ones a keyframe is added, it will be graphically represented on the Effect Editor timeline:

effect_keyframe_added

add_keyframe_button

It is possible to add multiple keyframes for animation to take effect. Reposition the slider to a different location on the timeline and press the "Add/Remove Keyframe" button.

remove_keyframe_button

The "Add/Remove Keyframe" button displayed in blue means that an existing keyframe is currently selected.

previous_keyframe_button

Press the "Go to Previous Keyframe" button to select the previous keyframe on the timeline.

next_keyframe_button

Press the "Go to Next Keyframe" button to select the next keyframe on the timeline.

Deleting Keyframes

There are several ways to delete keyframes on the timeline.

remove_keyframe_button

Select the required keyframe on the timeline and press the "Add/Remove Keyframe" button.

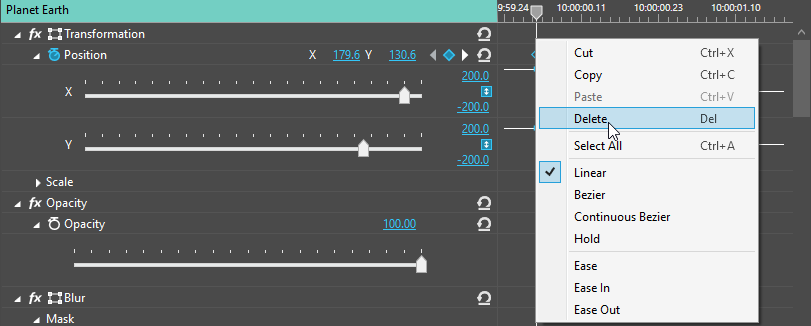

Alternatively, you can use the "Delete" command from the selected keyframe context menu:

keyframes_delete_command

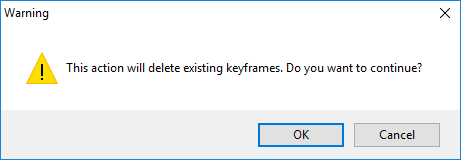

All keyframes for a certain effect parameter can be deleted deleted simultaneously by pressing the toggle_animation_button_pressed button. The following warning massage will ask you to confirm the keyframes deletion:

delete_all_keyfames_confirmation

Manipulating Keyframes on Timeline

The added keyframes can be manipulated directly on the timeline. They use the following table explains the keyframes indication and coloring:

IndicatorMeaning

animation_start

The keyframe animation starts with

animation_end

The keyframe animation ends with

animation_middle

The keyframe in the middle of animation

selected_keyframe

The selected keyframe

point_on_axis

Points indicating the keyframe position on the X and Y axes

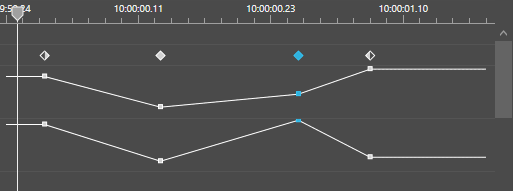

keyframes_manipulation

You can drag-and-drop the points on X and Y axes up and down directly on the timeline to change the keyframe position.
