The Effects Editor panel provides user with a set of powerful tools for adding video effects over the clips. Adding effects can bring a special visual characteristic to the clip. You can edit and preview the clip in real time, without waiting for rendering. The strength and position of any effects you apply are determined by the values you control.

The same video effect can be applied multiple times to the same clip with different settings.

Choose the "Effect Editor" command in the "Modules" > "Editing" menu. The "Effect Editor" window appears. Initially, the window contains no clip loaded for adding and editing effects, which is indicated by the corresponding sign:

effect_editor_no_clip

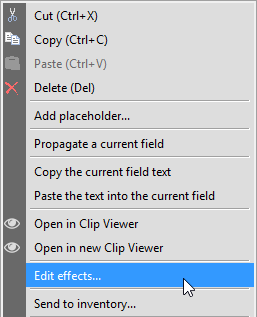

To load a clip from a ClipBin, use the "Edit effects" right-click menu command:

edit_effects_command

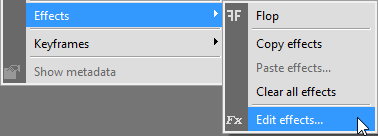

To edit effects in a clip from a Sequence, use the "Effects" > "Edit effects" right-click menu command:

edit_effects_subcommand
Note
To be able to use this command, please make sure the Sequence is activated for editing.

The same "Edit effects" right-click menu command is applicable for editing effects for the objects from a DocumentBin in a Sequence; by its means the effects can be added to a video clip in a Sequence with a Cinegy Type and Cinegy Titler templates.

The DocumentBin may also contain other document types.The supported formats enabled for editing effects for DocumentBin objects are listed in the table below:

Supported File Formats

Image File Formats

BMP, JPG, TIFF, TGA

Video File Formats

AVI, MOV, MXF, MP4, MPG/MPEG/M2V

Alternatively, clips can be enabled for editing effects via drag-and-drop directly to the "Effect Editor" window.

Once a clip is selected for editing, its essence is loaded to Sequence Viewer, the clip name appears on top of the "Effect Editor" window.

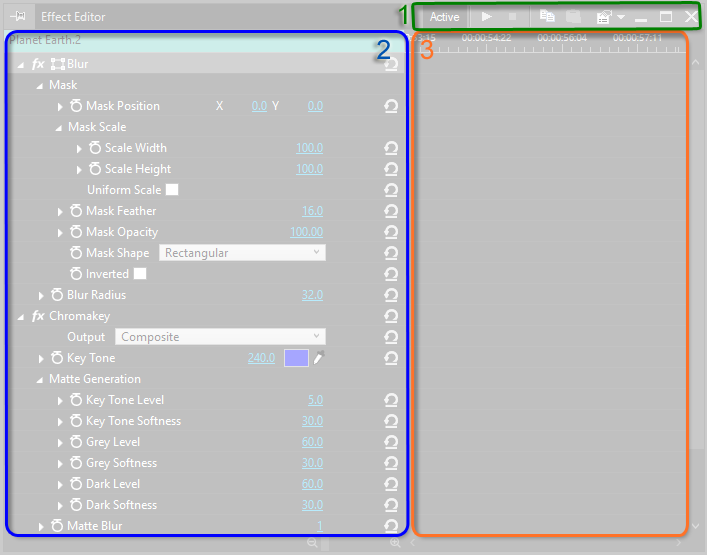

The interface consists of to main panels:

effect_editor_interface
  1. Toolbar ‒ controls for managing Effect Editor:


    Press the "Active" button to activate clip and start editing the effects.

    play_pause

    Buttons for toggling media file playback in the viewer to preview the applied effects.

    copy_paste

    Buttons for copy-paste operations.

    menu

    The Effect Editor menu.

  2. Control panel ‒ provides means for adding effects and managing their parameters;

  3. Timeline ‒ visual representation of effect keyframes used for animation.

The panels width is interdependently adjustable: increasing one panel width narrows down the other panel. To change the panels width, hover the mouse pointer over the panels grid on top; it will turn into effect_editor_resizing_tool . Drag the resizing tool right-left to change panels width:

effect_editor_resize_panels

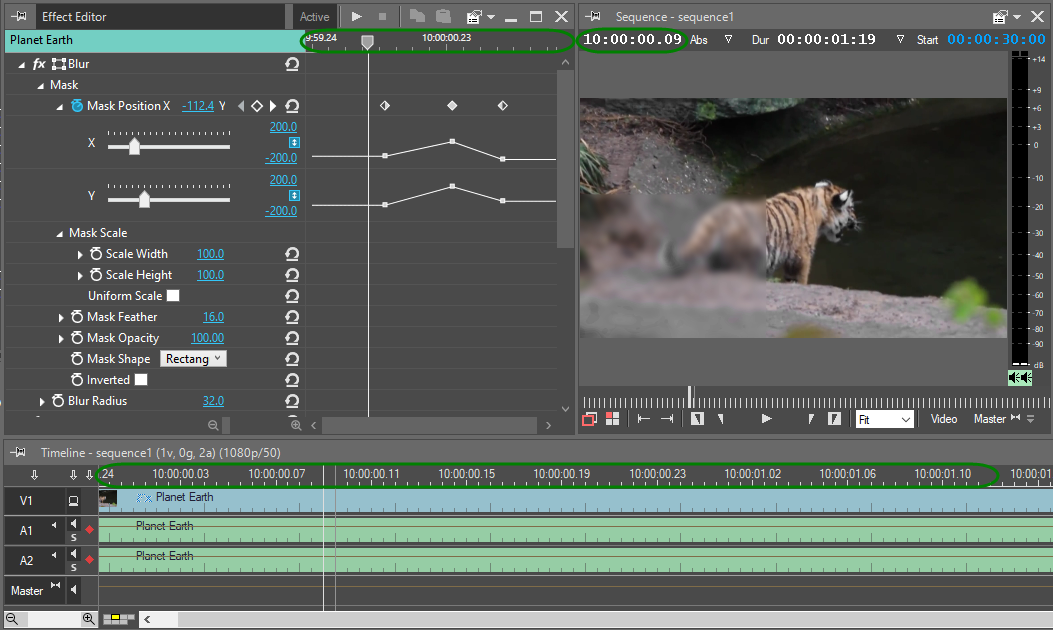

The timescale slider effect_editor_time_slider on top of the timeline panel indicates the current playback position, which corresponds to the one in Clip Viewer (when editing effects in a clip from a ClipBin) or on Cinegy Desktop Timeline and in Sequence Viewer (when editing effects in clips from a Sequence). The change of playback position applies to all of them synchronously:

effect_editor_current_position

effect_editor_zoom_control

The timeline can be zoomed in and out via the scale control at the bottom.

Storyline_button_active

Initially, all controls for effects editing are locked; press the "Active" button to activate clip and start editing the effects.

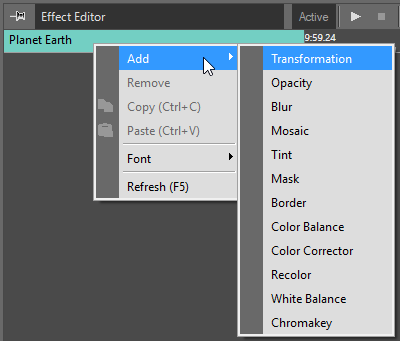

Right-click the clip name and select the effect you want to add from the "Add" submenu:

effect_editor_loaded_clip

Parameters of all effects are configured individually in the corresponding effect settings sections that appear.

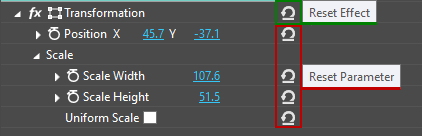

Pressing the effect_reset_button button next to an effect parameter resets its changes. To reset all parameters for an effect, press this button next to the effect title.

effects_reset

Effects and their parameters on the control panel are collapsible via the col_exp_buttons buttons or double-click.
