The FX Manager utility provides user with a set of powerful tools for adding video effects over the clips. Adding effects can bring a special visual characteristic to the clip. You can edit and preview the clip in real time, without waiting for rendering. The strength and position of any effects you apply are determined by the values you control.

The same video effect can be applied multiple times to the same clip with different settings.

Important
The FX Manager window is available for Clips with previously added effects via FX Manager in Cinegy Desktop version 10.5.

If the clip contains previously added in FX manager effects, the corresponding icon will be displayed:

FX_manager_interface

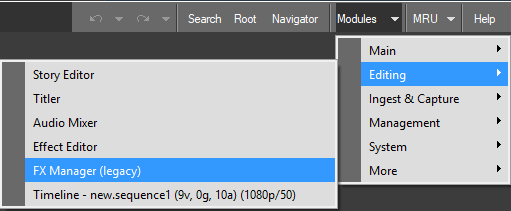

Choose the "FX Manager (legacy)" command in the "Modules" > "Editing" menu; the following "FX Manager (legacy)" window appears:

FX_manager_interface

The following "FX Manager (legacy)" window appears:

FX_manager_interface

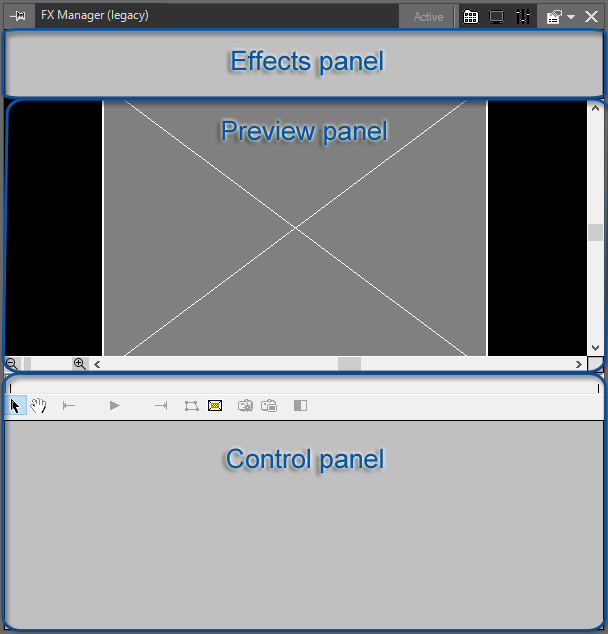

The main window is divided into 3 parts:

  • Effects panel (at the top);

  • Preview panel (in the middle);

  • Control panel (at the bottom).

fx_manager_effects_button

To show/hide the effects panel, select the following icon from the context menu or simply click this icon on the caption.

fx_manager_preview_button

To show/hide the preview panel, select the following icon from the context menu or simply click this icon on the caption.

fx_manager_control_button

To show/hide the control panel, select the following icon from the context menu or simply click this icon on the caption.

Use one of the following ways to start working with FX Manager (legacy):

  • Press FX_manager_Active_button to activate FX Manager (legacy). This will enable the FX Manager (legacy) interface elements so you can begin applying video effects and editing.

  • Select the clip containing previously added effects in FX manager (legacy).

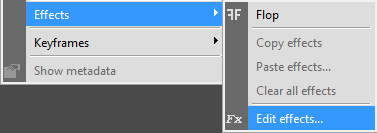

  • Press the FX_button button on the Timeline main toolbar or select the "Effects" > "Edit effects…" option on Timeline or :

FX_timeline_menu

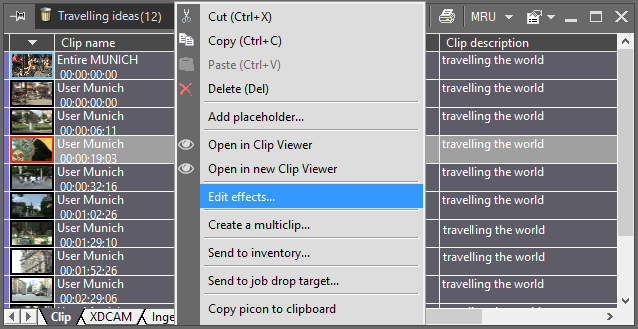

  • Open a ClipBin, right-click a clip in it and select the "Edit effects…" command from the clip context menu:

FX_ClipBin_menu
