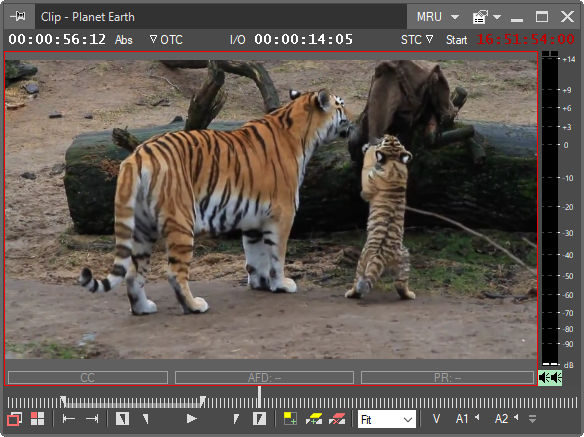

ClipViewer1

There are various ways to control video and audio playback in Cinegy Desktop.

Playback Control with Mouse

Play/Stop Button

play

The "Play" button in all the viewers toggles the playback mode.

stop

The "Stop" button suspends the playback of the material.

In all the viewers, there is a ruler at the bottom, which allows user to scroll to any desired location of a clip or Sequence.

It is possible to view any frame of the material by dragging the time slider.

Time_Ruler

Jumping to Events

You can use the "Jump to Event" buttons to move from event to event. Events are the beginning and the end of a clip and In and Out points. In Sequence Viewer, each clip is an event as well as the In and Out markers. Use:

prev

the "Previous event" button to jump to the previous event (the shortcut is A).

next

the "Next event" button to jump to the next event (the shortcut is S).

Shuttling using Mouse in Viewer

Drag horizontally in the frame window on the viewer to shuttle through your material with the mouse. The playback speed and direction depends on the direction and intensity of your drag.

  • Drag to the right to play forward.

  • Drag to the left to play backward.

The mouse pointer will show you the current speed and direction of the playback.

mouse_shuttle

Fast forward at 200% speed

Controlling Zoom in Viewer

Initially, the video material display size is set to fit the viewer window size. To use the divisible scales, press arrow down in the combobox on the bottom of the viewer:

viewer_zoom_combobox

Choose the required zooming size in percent, with 100% being the original size, pixel by pixel, depending on the current interlacing options. To scale to half the original size, use 50% or hit Ctrl+2. Use the Ctrl+1 to reset to the original size.

Note
The same options are available in the "Zoom" submenu of the viewer context menu.

It is also possible to set custom percentage by placing the pointer on the combobox field, entering the desired value via the keyboard, and hitting Enter.

Audio VU Meter

VU_meter

The VU meter is shown on the right of Clip Viewer.
It shows peak and integrated audio levels in dB scale.
It shows the master output for all the enabled audio channels mixed together.

mute

The speaker buttons allow user to mute an individual left/right audio channel or both audio channels simultaneously.

Important
To learn how to use the VU meter and set up its scale, refer to the Working with Audio section.

Using Keyboard

Your keyboard settings may vary depending on your setup.

Hit the Esc key to close Clip Viewer.

To switch to the full screen mode, hit the F12 key. All of the control keys and the jog-shuttle are available in full screen mode.

Hit the Esc key to return to the normal mode.

The following keys control the playback:

  • The Tab key plays the video in a loop.

  • The Space bar toggles the play/stop mode.

  • To loop play from In to Out, hit the 6 key.

  • To loop play according to the loop range, hit the 5 key.

  • To playback the video back and forth, "Ping-Pong", hit the ~ key.

Loop Range

The loop range defines the duration of the loop playback in seconds and is triggered by hitting the 5 key on the keyboard. To set up the loop range, right-click the viewer and select the "Set loop range…​" command:

LoopRange

The loop range can be found in all viewers and can range from 0.5 seconds up to 15 seconds.

J-K-L Shuttle

It is possible to shuttle through the material by using the <J-K-L> keys on the keyboard. Use the following keys to shuttle at varying speeds:

  • Hit the L key to move forward through the footage at normal speed.

  • Hit the J key to move backward at normal speed.

  • Hit the K key to pause the shuttling.

  • To stop the shuttling, hit the Space bar.

  • Hit the K+L keys together to slow forward.

  • Hit the K+J keys together to slow backward.

  • Hit the L or J key several times to increase the speed according to the following table:

Hit the J or L keyTo play at speedPAL rateNTSC rate

2 times

2x normal speed

50 fps

60 fps

3 times

3x normal speed

75 fps

90 fps

4 times

5x normal speed

125 fps

150 fps

5 times

8x normal speed

200 fps

240 fps

6 times

12x normal speed

300 fps

360 fps

7 times

16x normal speed

400 fps

480 fps

Home, End and Arrow Keys

In addition, you can use the following keys on your keyboard to navigate through clips and Sequences:

  • The Home key takes you to the beginning of a clip or a Sequence.

  • The End key takes you to the end of a clip or a Sequence.

  • The or 3 key moves one frame backward.

  • Pressing Alt+ or 1 moves 10 frames backward.

  • The or 4 key moves one frame forward.

  • Pressing Alt+ or 2 moves 10 frames forward.

Working with In and Out Points

You can use the following shortcuts to work on your In and Out points:

  • The or E keys set up the In point.

  • The O or R keys set up the Out point.

  • The D key deletes the In point.

  • The F key deletes the Out point.

  • The G key deletes both In and Out points.

  • The 6 key loop plays from In to Out.

  • The Shift+A plays the first 5 seconds from In point.

  • The Shift+S plays the first 5 seconds before Out point.

Using Mouse

You can use the mouse wheel to scroll in any player, Sequence window or Timeline.

Using the Jog-Shuttle

jog_shuttle

Cinegy Desktop supports any jog-shuttle device, which can emulate the keyboard input. Refer to the documentation of your jog-shuttle device to find out how to configure the shortcuts. To program some special functions, Cinegy Desktop provides additional "hidden" shortcuts, which you can find in the following table:

ShortcutPlay backward (speed)

Shift+Ctrl+Alt+Q

12.5%

Shift+Ctrl+Alt+W

25%

Shift+Ctrl+Alt+E

50%

Shift+Ctrl+Alt+R

100%

Shift+Ctrl+Alt+T

200%

Shift+Ctrl+Alt+Y

400%

Shift+Ctrl+Alt+U

16000%

Shift+Ctrl+Alt+I

64000%

Selecting Tracks for Playback

Use the track selectors in Clip Viewer to select the tracks you want to play. The track selector in Clip Viewer shows the video and audio channels available in the clip.

video_button

Depress the "Video" button to switch off the video track. Only audio is played.

audio_button

Depress the "Audio" buttons to switch off any audio track(s) you do not need.

If the clip contains a large number of the audio channels they are presented in the drop-down list:

Track_selector_drop-down_list

Audio_channel_mono Audio_channel_5.1

Depending on the audio channels type, the track selector will show the audio buttons of the corresponding type.

Wave_in_Viewer

A1 only channel playback, the viewer shows the waveform of this audio channel

Note
The waveform shows all the enabled channels mixed together.

Displaying the Waveform for the Audio Clips

The "Show waveform for audio only" option enables the waveform displaying for the audio clips. When the option is disabled, the black frames are shown instead. This option can be found in Clip Viewer main menu or in the right-click menu anywhere within the Clip Viewer window:

Show_waveform_for_audio_only
