By default, the Cinegy Process Coordination Service configurator launches automatically immediately after the installation is complete.

To manually launch the configurator, double-click the Process Coordination Service Configurator shortcut created on your Windows desktop after the installation. Alternatively, you can go to Start > All Programs > Cinegy > Cinegy Process Coordination Service > Cinegy Process Coordination Service Configurator.

PCS_configurator

The database settings, as well as Windows service parameters, advanced settings and logging settings should be specified here.

Managing PCS Databases ?

manage_button

Press the "Manage" button, the following drop-down list with all available options appears:

manage_list

Import from another version

Use the "Import from another version" button to import all settings from previously installed and configured PCS versions and apply settings to the current one:

manage_list

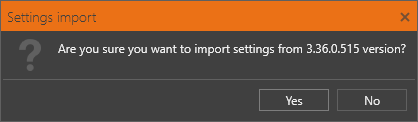

Select the required version from the list, the following confirmation window appears:

settings_import

Press the "Yes" button to save and apply the imported settings to the current version.

Import from file

Use the "Import from file" button to import previously exported or setting files from previous versions in XML format:

import_file

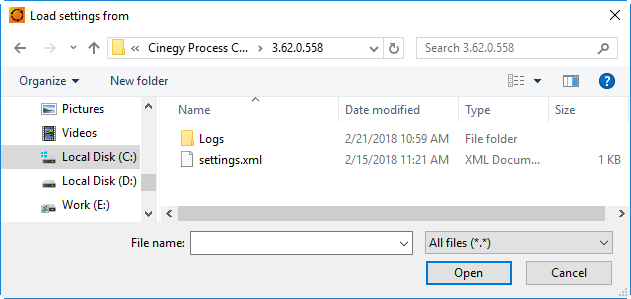

Use the "Load settings from" window that appears to import settings file from the selected folder:

import_from

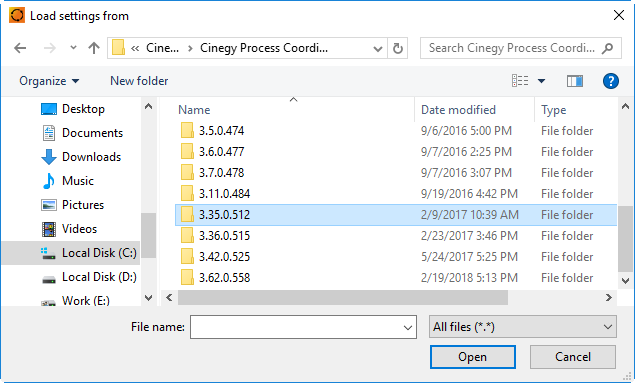

All log and settings files of previously installed PCS versions are stored in separate folders named according to the PCS version. Navigate to the C:\ProgramData\Cinegy\Cinegy Process Coordination Service and select the required version to import the specific settings file:

import_from_version

Export to file

Use the "Export to file" button to export all current settings to the XML file:

export_list

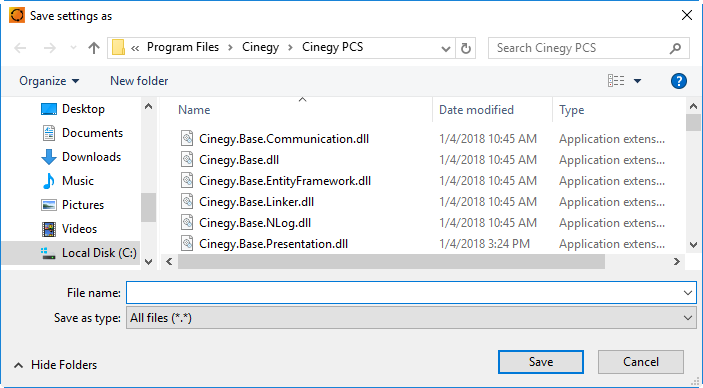

On the "Save settings as" window that appears, define the file name and save the settings file to the selected folder:

export_to

Reset settings to default

Press the "Reset settings to default" button to return to the default settings:

reset_settings

Having specified all the required settings, press the "Apply" button to save changes.
