Integration with Third-Party Archive Libraries

Reading time ~4 minutes

Cinegy Archive does not require any special plug-in to work with digital archive storages. The Cinegy File Service, which is available with the Cinegy Desktop installation package, provides integration with third-party archive storage systems.

Cinegy Archive/Cinegy File Service requirements for any tape- or non-tape-based archive storage systems are minimum:

Archive storage systems should correctly define the "Offline" flag for files. The Win32 function should return FILE_ATTRIBUTE_OFFLINE for the "GetFileAttributes" request.
File retrieval settings are the following: "Partial retrieval" mode should be disabled, and "Full file restore" should be used.

Important
Refer to the File Recall paragraph for more information about the Cinegy File Service settings for file retrieval.

Here is a typical "move-to-archive" and "retrieve-from-archive" scenario for working with third-party archive storage systems:

Manual Media Cleaner or Scheduled Media Cleaner can be used to copy/move media to network shares included in media groups with the "Archive" attribute. This is usually more cost-effective, but less performant. Media in archive storage remains accessible through the same location paths, but it cannot be restored on network shares included in media groups with the "Regular" attribute.

Then, media files on these shares can be monitored and managed by archive storage systems after transferring. Optionally, archive storage can be controlled by tape libraries, which transfer files to LTO (Linear Tape-Open), leaving the file on disk with size 0 and media attribute offline. Cinegy products recognize these files and skip reading them unless explicitly required, such as when exporting material.
Third-party archive systems should be set up to "watch" Cinegy Archive shares or volumes, with a set of rules to define which files to transfer to offline archive storage. For example, "all files on share path <…> created/modified more than 6 months ago have to be transferred to the archive library".
Then, following these rules, the archive system will transfer files to the offline storage, leaving only small file headers with the correct "Offline" flag on the Cinegy Archive shares or volumes.
For Cinegy software, such essences will be represented using the valid "Media Offline" state.

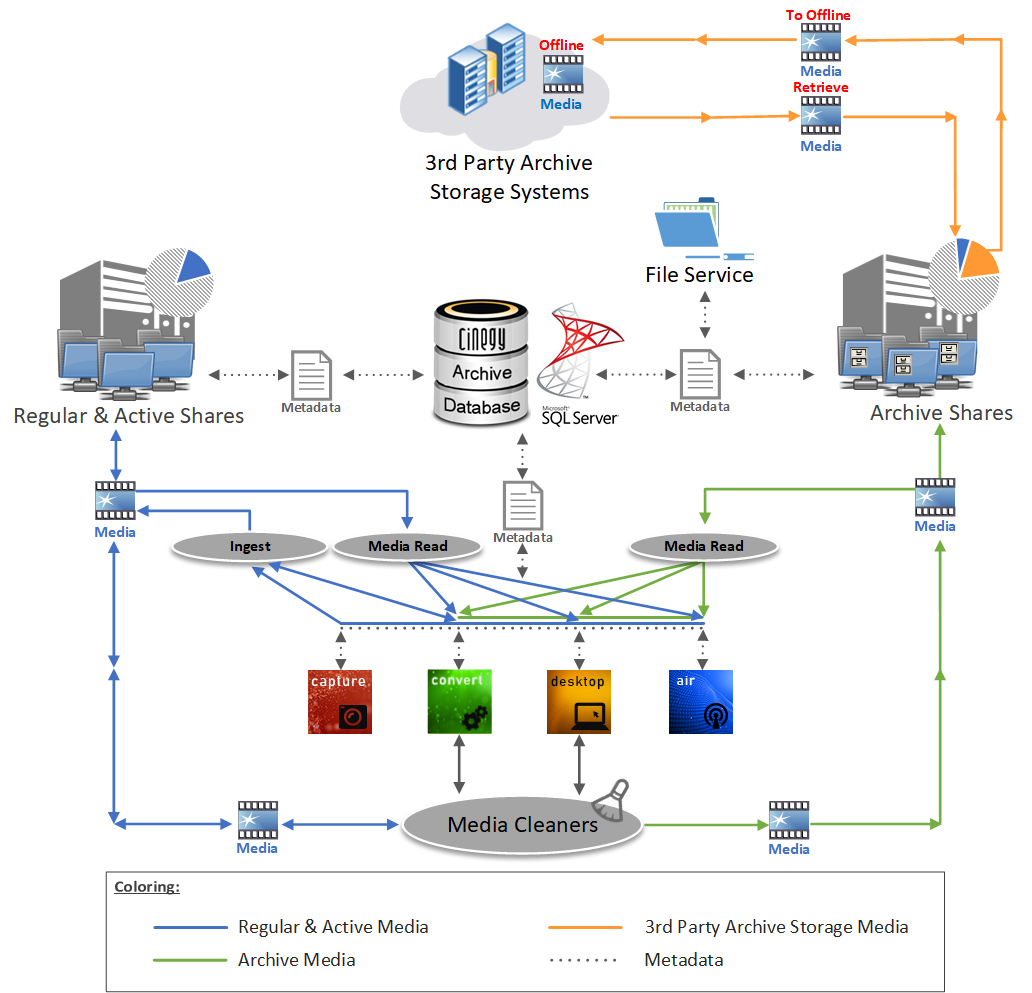

The following diagram graphically represents the process of media file transferring to Regular and Active shares, Archive shares, and third-party archive storage systems:

As shown in the diagram above, Media Cleaners are used by Cinegy Desktop and Cinegy Convert Legacy to copy/move unused files to archive storages. When the archive storage is full or/and media files meet the requirements for transfer to offline storage, the files are moved to third-party archive storage systems and gain the "Offline" state.

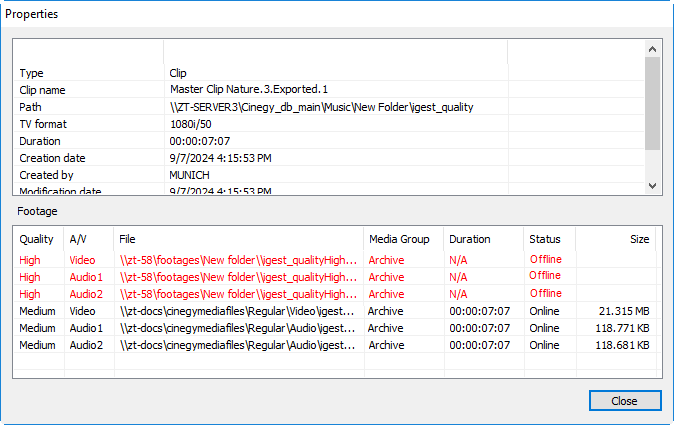

The "Offline" message is also displayed while viewing different media qualities. Use the "Clip properties" option from the context menu of the chosen clip to view where the footage is physically stored and its status.

Broadcasters may keep high-resolution videos offline to prevent unauthorized access or unexpected damage. Medium/Low/Web quality footages remain online and could be used by journalists and editors (also using remote Web clients) to create programs, news, portfolios, sequences, etc. When Cinegy clips or sequences are ready for output, you can retrieve the required file resolution.

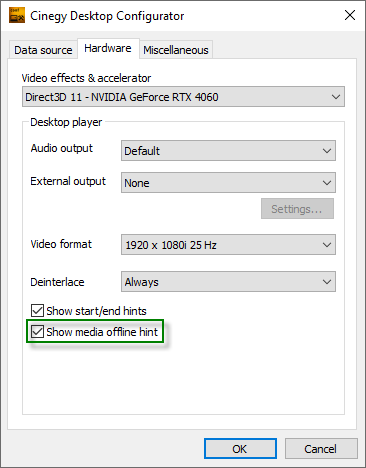

To show that Cinegy sequences and/or clips contain archived media files, it is required to enable the "Media offline" message for Cinegy Archive items. To do this, select the "Show media offline hint" checkbox in Cinegy Desktop Configurator.

Important

Access to offline media files, different media qualities, and the "Clip properties" option can be limited by user rights and permissions. Refer to the Connection Info section to see the rights assigned to the current user.

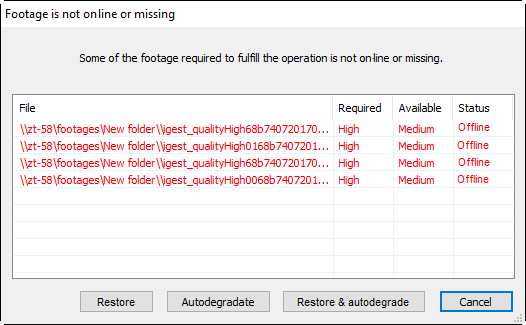

However, if the "Export…", "Send to…", and "Convert…" operations are initiated by Cinegy software, a warning window appears informing the user that the footage of such quality is offline while providing the options to cancel, autodegradate quality, or restore from archive storage:

Recover Offline Files

If you perform the "Retrieve" operation, the Cinegy File Service will try to read the offline file, forcing the third-party archive storage system to restore media at its original location.

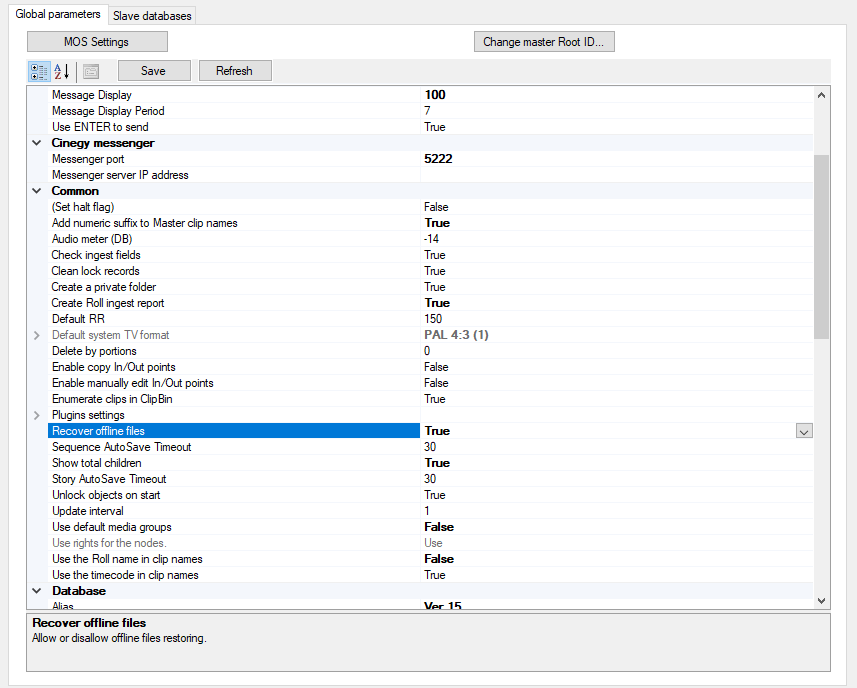

To enable this feature, configure the corresponding global parameters in Cinegy Archive Manager. To do this, use the "Global parameters" option from the "Server database settings" submenu to open the "Global parameters" tab and set the "Recover offline files" option to "True":

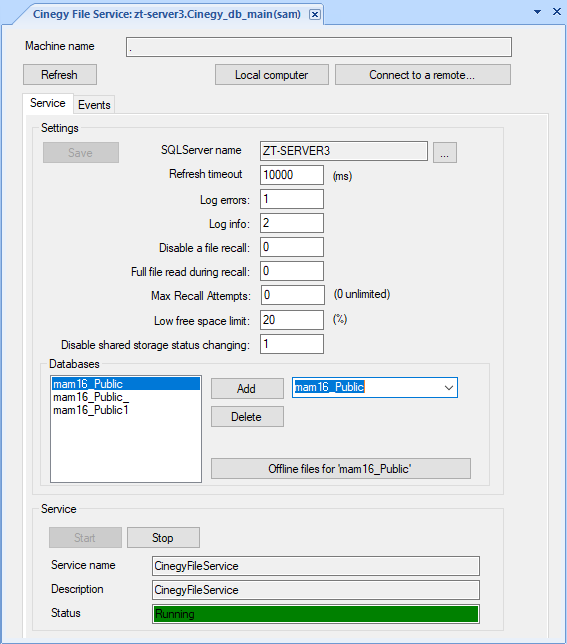

If there are any offline files available for retrieving from the chosen database, the "Offline files" button will be highlighted in the "Service" tab of the "Cinegy file service" window:

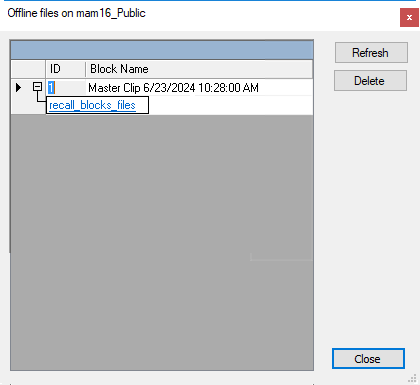

Click the "Offline files" button to open the list of offline files stored in the selected database:

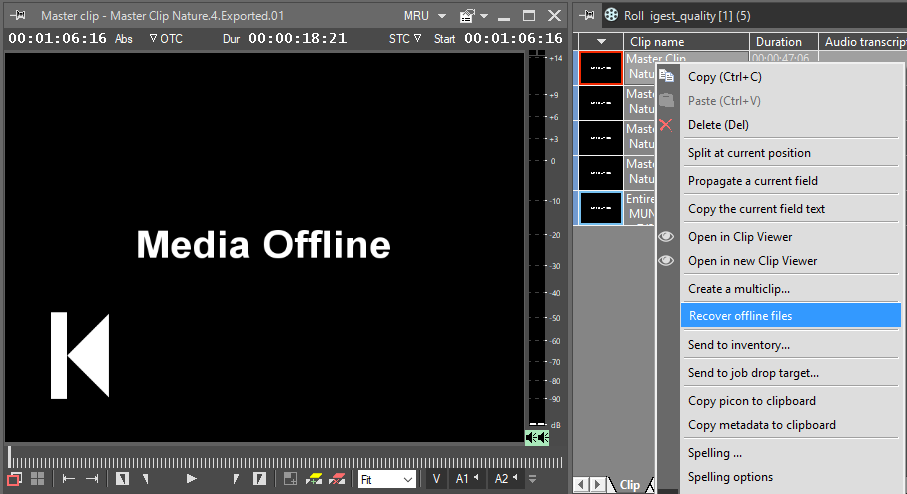

Once configured, the "Recover offline files" option will be available for media files marked as "Media Offline". Right-click on the selected archived clip and choose the corresponding command from the context menu that appears:

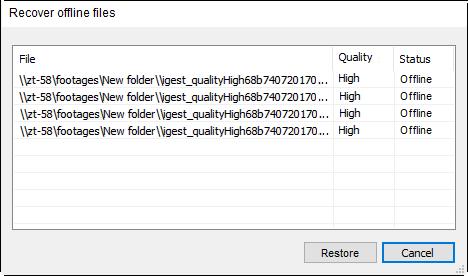

In the dialog that appears, click the "Restore" button:

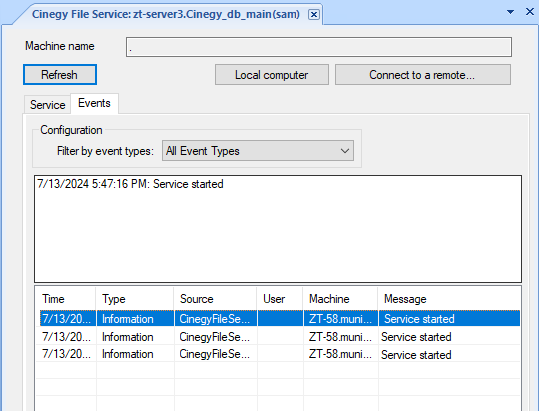

The information about the offline files restoring process and possible errors will be displayed in the "Events" tab of the "Cinegy file service" window:

If media files are successfully restored, the "Export…", "Send to…", and "Convert…" processes will continue, using the restored (previously offline) data and properties.
